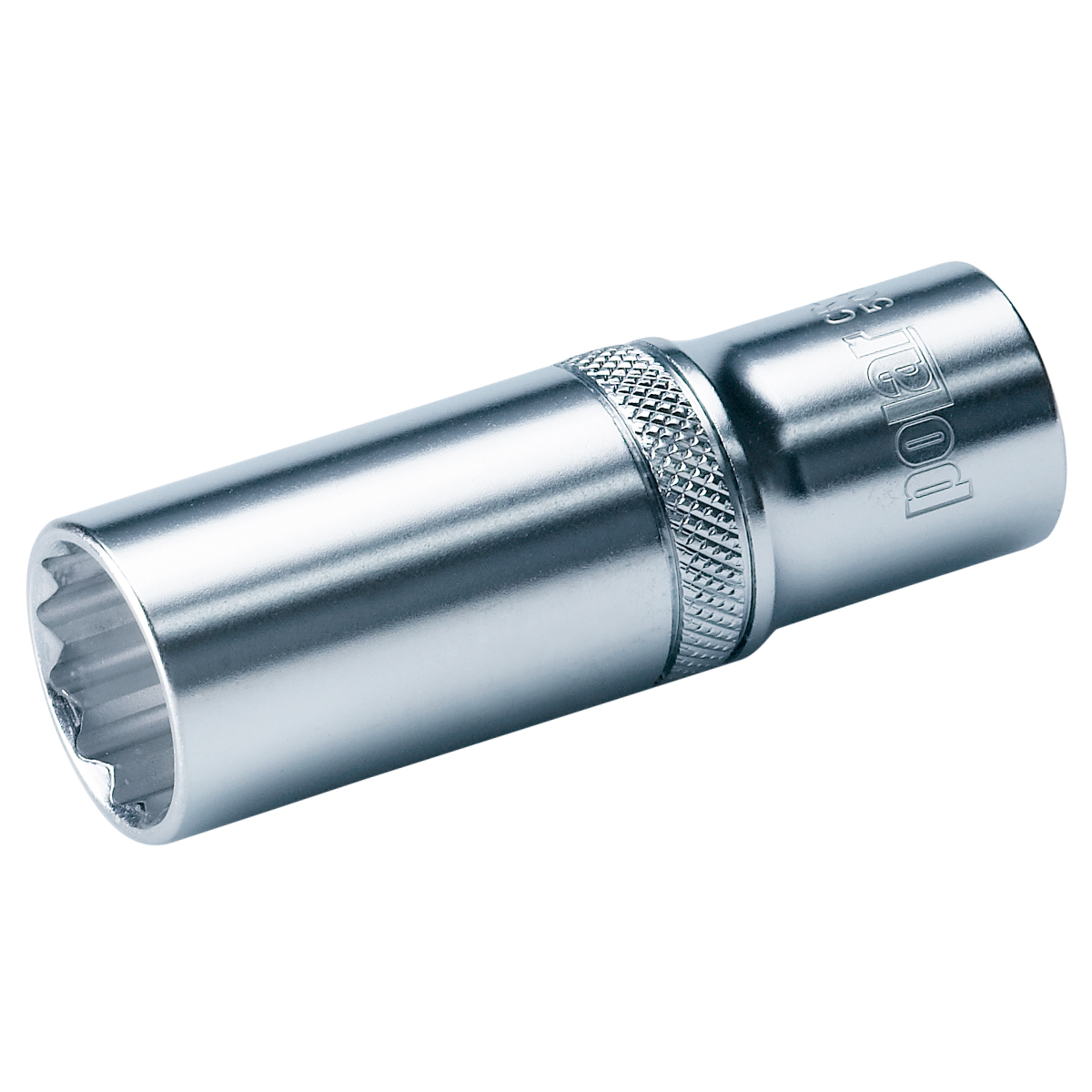

1/2” 12-Kant Steckschlüssel-Einsätze, lang (Zoll)
ANSI B107.
Ausführung: Verchromt und hochglanzpoliert. Material: Chrom-Vanadium-Stahl.
Ausführung: Verchromt und hochglanzpoliert. Material: Chrom-Vanadium-Stahl.
| Größe ” | Artikel-Nr. | B mm | B1 mm | C mm | L mm | Gewicht (g) |
|---|---|---|---|---|---|---|
| 3/8” | 5012-5112 | 22,0 | 15,0 | 12 | 77 | 96 |
| 13/32 | 5012-5113 | 22,0 | 15,7 | 12 | 77 | 98 |
| 7/16 | 5012-5114 | 22,0 | 16,3 | 12 | 77 | 101 |
| 15/32 | 5012-5115 | 22,0 | 17,6 | 12 | 77 | 105 |
| 1/2 | 5012-5116 | 22,0 | 18,8 | 12 | 77 | 109 |
| 9/16 | 5012-5118 | 22,0 | 20,4 | 15 | 77 | 112 |
| 19/32 | 5012-5119 | 20,7 | 21,6 | 15 | 77 | 128 |
| 5/8 | 5012-5120 | 21,5 | 22,9 | 15 | 77 | 112 |
| 21/32 | 5012-5121 | 22,0 | 24,0 | 15 | 77 | 123 |
| 11/16 | 5012-5122 | 22,0 | 24,0 | 15 | 77 | 133 |
| 3/4 | 5012-5124 | 23,0 | 26,0 | 15 | 77 | 157 |
| 25/35 | 5012-5125 | 24,0 | 27,9 | 18 | 77 | 210 |
| 13/16 | 5012-5126 | 25,0 | 28,0 | 18 | 77 | 222 |
| 7/8 | 5012-5128 | 26,0 | 30,0 | 18 | 77 | 227 |
| 15/16 | 5012-5130 | 28,0 | 32,0 | 21 | 77 | 255 |
| 1 | 5012-5132 | 30,0 | 34,0 | 24 | 77 | 315 |
| 1 1/16 | 5012-5134 | 30,0 | 36,0 | 24 | 77 | 352 |
| 1 1/8 | 5012-5136 | 32,0 | 38,0 | 27 | 77 | 331 |
| 1 3/16 | 5012-5138 | 34,0 | 40,0 | 30 | 77 | 373 |
| 1 1/4 | 5012-5140 | 36,0 | 42,0 | 33 | 77 | 420 |
