1/2” Kraft 6-kant Steckschlüssel-Einsätze, lang (mm)
Ausführung: Phosphatiert. Material: Chrom-Molybdän-Stahl.

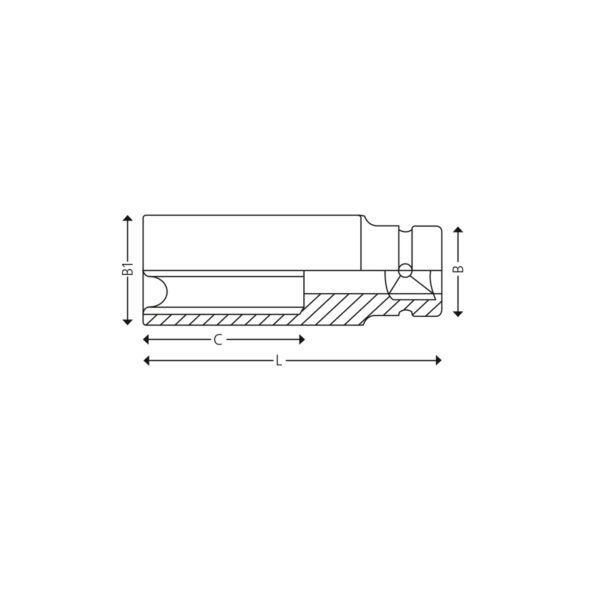

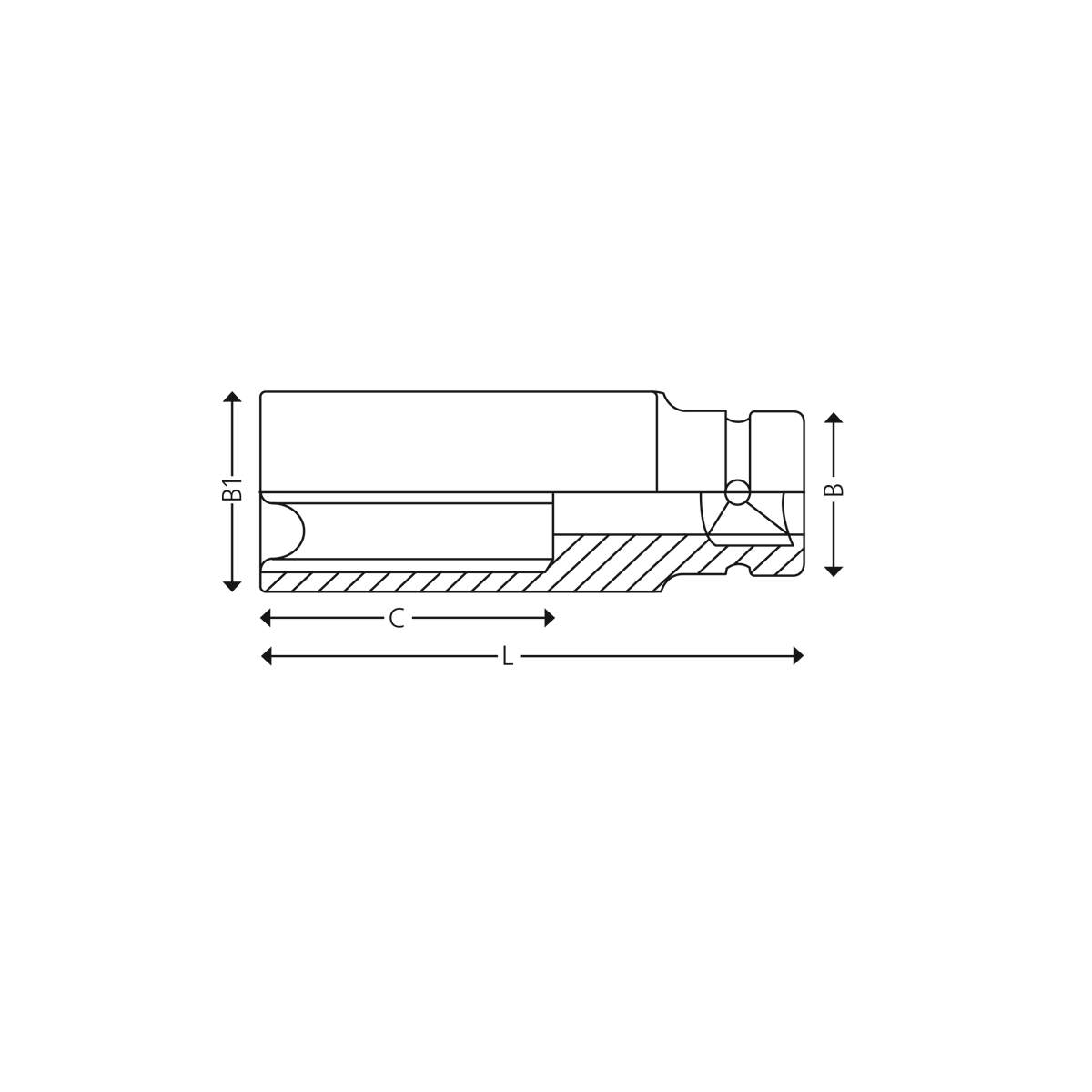

| Größe mm | Artikel-Nr. | B mm | B1 mm | C mm | L mm | Gewicht (g) |
|---|---|---|---|---|---|---|
| 10 | 6012-4010 | 24 | 17,5 | 14 | 78 | 154 |
| 11 | 6012-4011 | 24 | 18,5 | 14 | 78 | 163 |
| 12 | 6012-4012 | 24 | 20,0 | 14 | 78 | 169 |
| 13 | 6012-4013 | 24 | 21,0 | 14 | 78 | 185 |
| 14 | 6012-4014 | 24 | 22,0 | 17 | 78 | 201 |
| 15 | 6012-4015 | 24 | 24,0 | 17 | 78 | 213 |
| 16 | 6012-4016 | 24 | 24,0 | 17 | 78 | 224 |
| 17 | 6012-4017 | 26 | 26,0 | 17 | 78 | 252 |
| 18 | 6012-4018 | 28 | 28,0 | 17 | 78 | 283 |
| 19 | 6012-4019 | 28 | 28,0 | 19 | 78 | 268 |
| 20 | 6012-4020 | 30 | 30,0 | 24 | 78 | 247 |
| 21 | 6012-4021 | 30 | 30,0 | 24 | 78 | 310 |
| 22 | 6012-4022 | 30 | 32,0 | 24 | 78 | 302 |
| 23 | 6012-4023 | 30 | 32,0 | 26 | 78 | 256 |
| 24 | 6012-4024 | 30 | 34,0 | 24 | 78 | 309 |
| 25 | 6012-4025 | 30 | 36,0 | 35 | 78 | 296 |
| 26 | 6012-4026 | 30 | 36,0 | 35 | 78 | 280 |
| 27 | 6012-4027 | 30 | 38,0 | 24 | 78 | 325 |
| 28 | 6012-4028 | 30 | 40,0 | 35 | 78 | 316 |
| 29 | 6012-4029 | 30 | 40,0 | 35 | 78 | 355 |
| 30 | 6012-4030 | 30 | 42,0 | 24 | 78 | 352 |
| 32 | 6012-4032 | 30 | 44,0 | 24 | 78 | 317 |
| 33 | 6012-4033 | 30 | 46,0 | 50 | 78 | 430 |
| 36 | 6012-4036 | 38 | 50,0 | 50 | 78 | 512 |
| 41 | 6012-4041 | 38 | 56,0 | 50 | 78 | 588 |
| 46 | 6012-4046 | 43 | 60,0 | 48 | 78 | 704 |
