3/4” 6-Kant Steckschlüssel-Einsätze (mm)
ISO 2725-1, DIN 3124
Ausführung: Verchromt. Material: Chrom-Vanadium-Stahl.
Ausführung: Verchromt. Material: Chrom-Vanadium-Stahl.

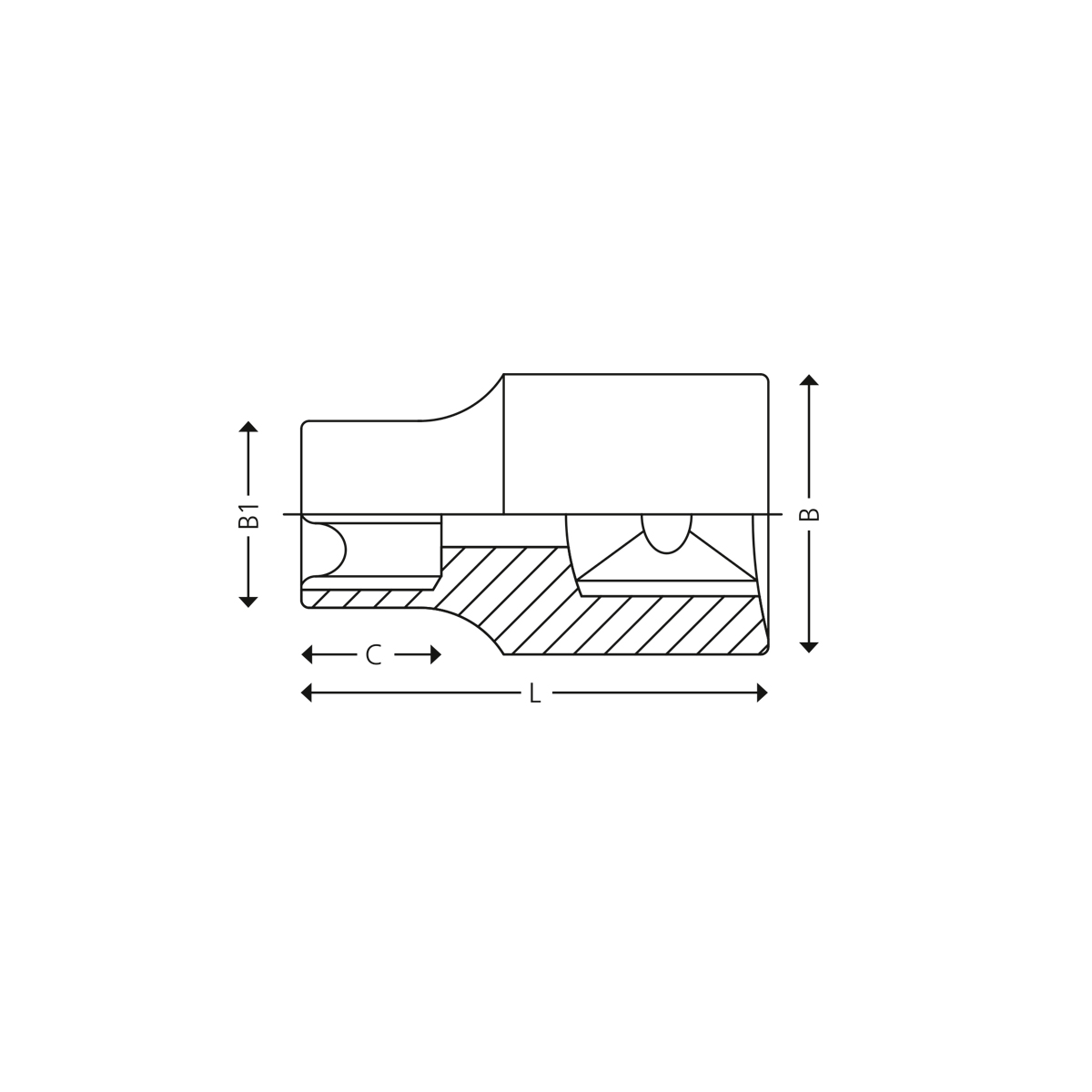

Größe mm | Artikel-Nr. | B mm | B1 mm | C mm | L mm | Gewicht (g) |
---|---|---|---|---|---|---|
19 | 5034-0019 | 33 | 29,2 | 14 | 50 | 170 |
21 | 5034-0021 | 33 | 31,2 | 14 | 50 | 190 |
22 | 5034-0022 | 36 | 32,2 | 14 | 50 | 220 |
24 | 5034-0024 | 36 | 34,2 | 16 | 51 | 230 |
27 | 5034-0027 | 36 | 38,0 | 22 | 52 | 240 |
30 | 5034-0030 | 38 | 42,0 | 24 | 54 | 280 |
32 | 5034-0032 | 38 | 44,0 | 26 | 56 | 310 |
33 | 5034-0033 | 38 | 46,0 | 26 | 56 | 330 |
36 | 5034-0036 | 42 | 50,0 | 28 | 58 | 430 |
38 | 5034-0038 | 45 | 52,0 | 28 | 60 | 500 |
41 | 5034-0041 | 45 | 56,0 | 30 | 64 | 570 |
46 | 5034-0046 | 48 | 62,0 | 34 | 68 | 700 |
50 | 5034-0050 | 48 | 68,0 | 36 | 72 | 850 |
55 | 5034-0055 | 48 | 74,0 | 40 | 76 | 1000 |
