3/8” 12-Kant Steckschlüssel-Einsätze (Zoll)
ANSI B107.
Ausführung: Verchromt und hochglanzpoliert. Material: Chrom-Vanadium-Stahl.
Ausführung: Verchromt und hochglanzpoliert. Material: Chrom-Vanadium-Stahl.

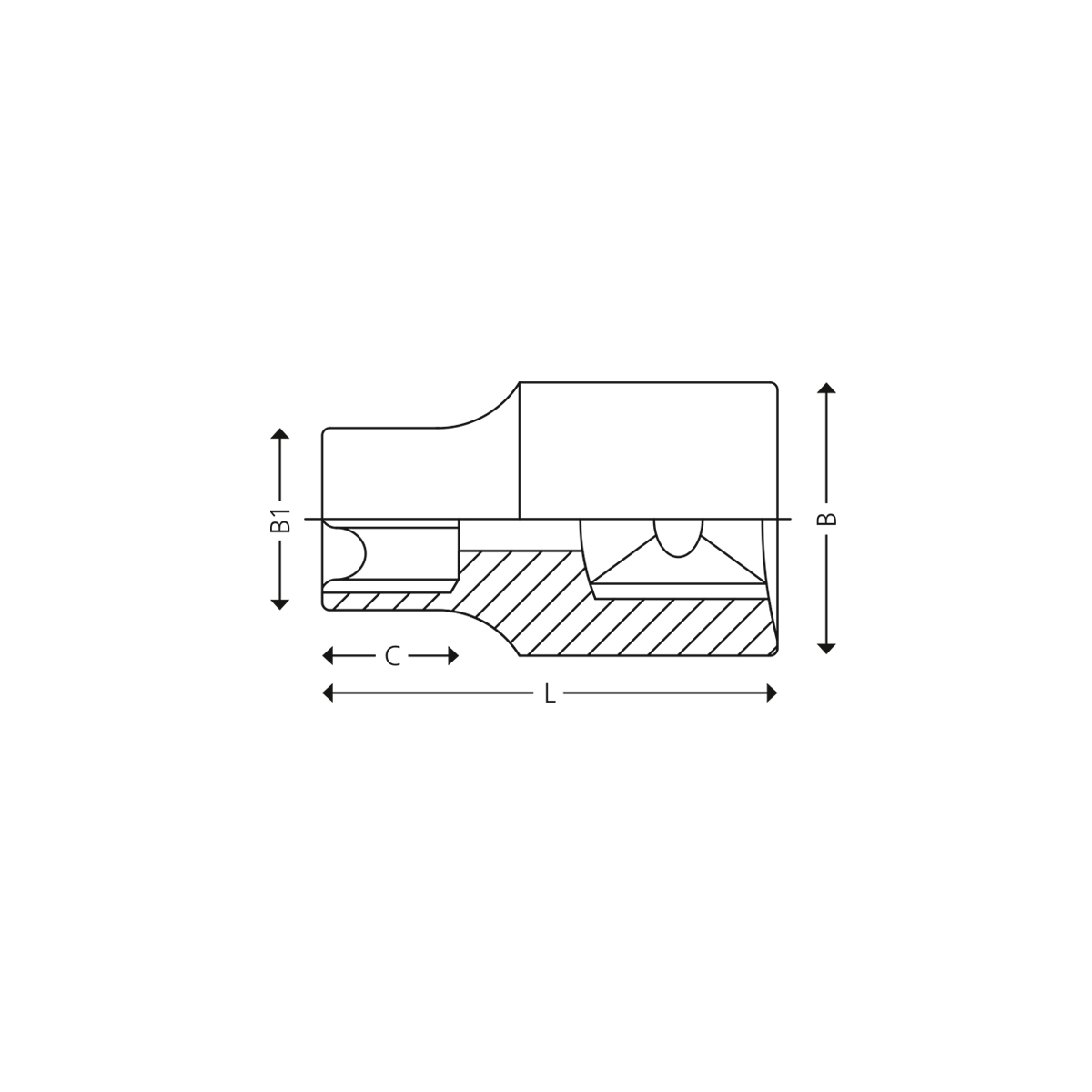

| Größe ” | Artikel-Nr. | B mm | B1 mm | C mm | L mm | Gewicht (g) |
|---|---|---|---|---|---|---|
| 1/4” | 5038-2108 | 17,0 | 10,2 | 8 | 28 | 22 |
| 9/32 | 5038-2109 | 17,0 | 10,6 | 8 | 28 | 22 |
| 5/16” | 5038-2110 | 17,0 | 11,8 | 8 | 28 | 24 |
| 11/32 | 5038-2111 | 17,0 | 13,2 | 8 | 28 | 24 |
| 3/8” | 5038-2112 | 17,0 | 14,5 | 8 | 28 | 25 |
| 13/32 | 5038-2113 | 17,0 | 14,5 | 8 | 28 | 24 |
| 7/16 | 5038-2114 | 17,0 | 15,7 | 8 | 28 | 24 |
| 15/32 | 5038-2115 | 16,0 | 17,0 | 8 | 28 | 23 |
| 1/2 | 5038-2116 | 16,5 | 18,0 | 8 | 28 | 27 |
| 9/16 | 5038-2118 | 17,0 | 19,6 | 12 | 28 | 34 |
| 19/32 | 5038-2119 | 18,0 | 21,8 | 12 | 28 | 41 |
| 5/8 | 5038-2120 | 19,0 | 22,0 | 12 | 30 | 43 |
| 21/32 | 5038-2121 | 20,0 | 23,4 | 12 | 30 | 48 |
| 11/16 | 5038-2122 | 20,0 | 23,4 | 12 | 30 | 54 |
| 3/4 | 5038-2124 | 23,0 | 26,0 | 14 | 30 | 68 |
| 25/32 | 5038-2125 | 25,0 | 27,1 | 14 | 32 | 81 |
| 13/16 | 5038-2126 | 25,0 | 28,0 | 14 | 32 | 83 |
| 7/8 | 5038-2128 | 26,0 | 29,6 | 14 | 32 | 99 |
